air process temperature sensing

Temperature Sensing Control (For horizontal use only)

Thermocouple fittings are available for standard air heaters with male fittings 5/8″ diameter and larger as well as Heavy Duty and Pure Flow types. The fittings are threaded into the exit end of the air heater and accept coupling type probes. They are designed to sense the exit air temperature. See Temperature Controlling Devices for details on temperature controls.

Fittings - Stainless Steel

Catalog No.

A-NPT

B-NPT

C

D

E

F

TC-5

1/2″

1/2″

1 3/8″

1 1/8″

.562″

9/16″

TC-75

3/4″

3/4″

1 1/2″

1 3/8″

.625

7/16′

TC-1

1″

1″

1 3/4″

1 5/8″

.687

3/8″

TC-125

1 1/4″

1 1/4″

2″

2″

.719

1/4″

Selection Chart

Heater Type

Fitting

5/8″ dia.

TC-5

3/4″ dia.

TC-75

1 1/4″ dia.

TC-125

Heavy Duty

TC-1

Pure Flow

TC-5

How to Order

Example: TC-5/HT-121202-0001

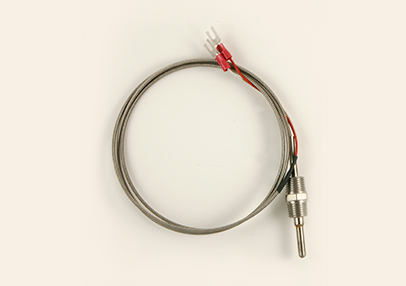

Thermocouple Sensing

Temperature Sensing Control construction
