Description

U.L. Recognized – E56973
C.S.A. Certified – 016386-0-000

Maximum Air Flow construction

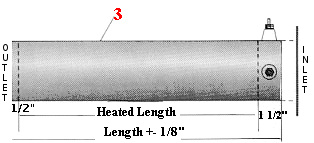

Maximum Air Flow Construction length
Construction
  1. Post Terminals.
  2. Optional flanges-4″O.D. with three 9/32″ diameter holes equally spaced on 3.250 BC-one or both ends.
  3. Standard aluminum sheath – optional stainless steel sheath.
Applications
  1. Baking, drying, packaging, and preheating.
Features
  • This Maximum Flow Air Heater design is encased within a 2 3/8″O.D. tube with a cross frame heating element for minimum resistance to air flow. It has a practical operating range of up to 200 CFM with temperatures up to 600°F (315°C).
  • For easier mounting, Backer Hotwatt can supply a 4″O.D. mounting flange on one or both ends.
  • The heater is available in either aluminum or stainless steel.
  • Its design features include a nickel-chrome heating element insulated by ceramic beads on a stainless steel support frame, firmly secured to the inside of the tube.
  • Designed for high volume and moderate temperature.
  • Low pressure for use with blowers and recirculating air.
  • Made in U.S.A.
Specifications

Maximum Amperage: 15

Cross Sectional Flow Area: 3.5 sq. in.

Aluminum Sheath

Stainless Steel Sheath

CFM

Max.Watts/linear
in.
of heated length

CFM

Max.Watts/linear
in.
of heated length

1

150

1

150

2

150

2

150

4

150

4

150

6

150

6

150

8

150

8

150

10

150

10

150

20

175

20

250

30

275

30

375

40

350

40

475

50

450

50

600

60

525

Sizes

Length

Heated Length

Catalog Number

Cat. No. with 4″O.D.
flange at
entry end only.

6″

4″

MA0-6

MA0-6-F1

8″

6″

MA0-8

MA0-8-F1

10″

8″

MA0-10

MA0-10-F1

12″

10″

MA0-12

MA0-12-F1

14″

12″

MA0-14

MA0-14-F1

18″

16″

MA0-18

MA0-18-F1

24″

22″

MA0-24

MA0-24-F1

Red catalog number denotes stock item. See stock section for specific ratings.

3 Phase not available in this unit



Consult facotory for:
Current ratings above 15 amps.
Wattages above 300 watts per linear inch.
Longer lengths and larger sizes.

Special Features

Add suffix to catalog number.
F1: Optional flange inlet end.
F2: Optional flanges each end.
SF37: Stainless steel sheath.
