STRIP HEATERS MICA INSULATED
%20STRIPMICA.png)
%20CERAMICINSULATEDFINNED.png)
%20(2)%20SPECIALFEATURES.png)
Description
U.L. Recognized – E56973
C.S.A. Certified – 016386-0-000
Applications
Dies, cylinders, kettles, molds, process machines, platens, tanks, or other applications where controlled heating is needed.
Features
- Strip heaters may be used single or in groups to provide the required amount of heat.
- For maximum distribution, it is recommended that the strip heaters be clamped securely to area to be heated to prevent distortion or unequal expansion.
- Made in U.S.A.

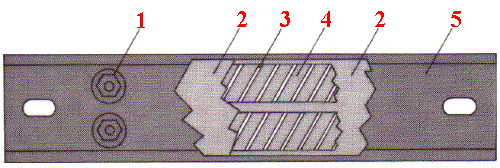

Construction
- Post Terminals.
- Mica Insulator.
- Resistance Ribbon Wire.
- Mica Element Support.
- Rust Resistant Steel Sheath.
Width 1" | 1 1/2" | 2" | |||||||
|---|---|---|---|---|---|---|---|---|---|
Overall | Catalog | Min. | Max. | Catalog | Min. | Max. | Catalog | Min. | Max. |
4″ | ST1-4 | 50 | 100 | ST1.5-4 | 50 | 155 | ST2-4 | 50 | 195 |
6″ | ST1-6 | 50 | 155 | ST1.5-6 | 50 | 250 | ST2-6 | 50 | 315 |
8″ | ST1-8 | 50 | 230 | ST1.5-8 | 50 | 340 | ST2-8 | 50 | 435 |
12″ | ST1-12 | 50 | 345 | ST1.5-12 | 50 | 520 | ST2-12 | 50 | 675 |
18″ | ST1-18 | 50 | 520 | ST1.5-18 | 50 | 790 | ST2-18 | 50 | 1035 |
24″ | ST1-24 | 50 | 700 | ST1.5-24 | 50 | 1060 | ST2-24 | 50 | 1395 |
Width 2 1/2" | 3" | 4" | |||||||
|---|---|---|---|---|---|---|---|---|---|
Overall | Catalog | Min. | Max. | Catalog | Min. | Max. | Catalog | Min. | Max. |
4″ | ST2.5-4 | 50 | 215 | ST3-4 | 50 | 230 | ST4-4 | 50 | 300 |
6″ | ST2.5-6 | 50 | 350 | ST3-6 | 50 | 400 | ST4-6 | 50 | 540 |
8″ | ST2.5-8 | 50 | 515 | ST3-8 | 50 | 590 | ST4-8 | 50 | 780 |
12″ | ST2.5-12 | 50 | 775 | ST3-12 | 50 | 940 | ST4-12 | 50 | 1250 |
18″ | ST2.5-18 | 50 | 1250 | ST3-18 | 50 | 1480 | ST4-18 | 50 | 2000 |
24″ | ST2.5-24 | 50 | 1700 | ST3-24 | 50 | 2000 | ST4-24 | 50 | 2700 |
- Standard Termination is Type SSA. For units under 1 1/2″ wide, standard termination is Type FO.
Wattage
The above chart is based on a watt density of 30 watts per square inch of surface.
The watt density should be varied, depending on operating temperature in accordance with the following table.
Operating Temperature | Watts/square inch |
|---|---|
300°F | 40 |
400°F | 30 |
500°F | 21 |
600°F | 12 |
700°F – 900°F (Max.) | 10 |
To compute wattage, multiply length (less 1″) x width x watts per square inch based on above table. On units with mounting holes, reduce length by an additional 2″ when computing wattage.
Voltage
Standard voltages are either 120V or 240V. Other voltages are available.
Tolerances
Width: ±.03″
Thickness: .187″ nominal
Length:
Up to 24″, ±1/16″
24″ to 48″, ±1/8″
Lengths over 48″, consult factory.
Terminal Height: 3/4″ nominal
Wattage tolerances are held to ±5%, -10% at rated voltage.
Mounting Holes
Units are supplied without mounting holes. 1/2″ x 5/16″ mounting holes, one each end, may be supplied if specified. Hole center is 1/2″ from end. Terminals are 1 1/4″ from end on types SSA, SSB, and SO on units with mounting holes. Other mounting hole sizes and locations are available. Consult factory.
How To Order
Specify: Quantity, width, length, wattage, voltage, terminal arrangement, mounting holes and cutouts if any. Detail cutouts, and mounting holes (if any) on dimensional drawing.
Example: ST1.5-10/300W/120V/SSA/ standard mounting holes
Optional Termination
Stainless Steel Post
Up to 2 1/4″ wide: 6-32 x 1″ maximum 5/8″ on center
2 1/4″ wide and wider: 8-32 x 1″ maximum, 3/4″ on center
Type SSA: Parallel one end
Available on: 1 1/2″ and wider
Type SC: Centered post terminals
Available on: 1 1/2″ and wider
Type SSB: Tandem one end.
Available on: 1 1/2″ and wider
Type SO: Opposite ends
Available on: 1″ and wider
High Temperature Insulated Leads
Type FS: Insulated leads at one end
Available on: 1 1/2″ and wider
Type FO: Insulated leads at opposite ends
Available on: 1″ and wider
